Automatic Potentiometric Titrators

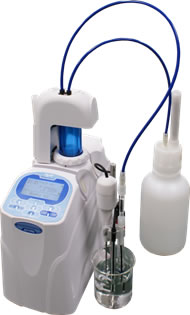

  AT-710 - Automatic Potentiometric Titrator

AT-700           AT-700

    • A4 Size (one of the smallest size titrator)
    • Optional printer can draw titration curve and results. And USB can be used to transfer data as CSV format to PC.
    • Language display (Japanese, English, Chinese, Korean , Russian)
    • New burette designing to load switching valve on the burette and optional second burette is possible to be added.
    • Burette steps for full stroke: 20,000
    • Accuracy of burette: ±0.02mL (20mL burette)
    • Repeatability: ±0.01mL (20mL burette)

Applications: Salinity and acidity in food products, acidity in wine


Specifications

Automatic Potentiometric Titrator <AT-710>

Detection range 1) Potential:-2000mVto +2000mV
2) pH:-20.00to 20.00pH
3) Temperature:0to 100℃
Titration mode Auto titration, Auto intermit, Intermit, Stat
Number of methods Up to 20
Titration Potentiometric (acid-base titration /redox titration/precipitation titration) / Photometric / Polarization / Conductometric
Titration form EP stop method, Level stop method, Full
Special application Measurement of electrode potential (pH, potential), Acid dissociation constant(pKa)
Display White LED-backlit LCD
On-screen display 1) Potential, titration volume/ Measurement Results/ Titration conditions /Parameters
2) Japanese, English, Chinese, Korean , Russian
Calculation Concentration Statistics(mean, SD, RSD) / Auto input of blank and factor
Data memory 50 samples

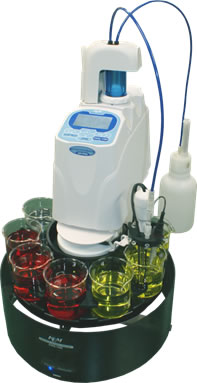

Multiple Sample Changer <CHA-700>

Number of samples Up to 6
Sample container 250mL beaker, 200mL disposable cup, 250mL beaker or 200mL beaker

(option)
100mL disposable cup, 50mL beaker, 100mL beaker or
100mL tall beaker
Cleaning Dipping in beaker at fixed position / Shower cleaning (option)
Rinse solution Pure water , alcohol, etc.
Stirring device Propeller stirrer
Motion Sample rack up-down motion, rotation of arm
Sequence setting Set from Automatic Potentiometric Titrator
Sequence control 1) Auto : started by Automatic Potentiometric Titrator
2) Manual : operated from Automatic Potentiometric Titrator
Display LED (Power, Remote, Beaker)
* LED for beaker at each position
External I/O SS-BUS ×2: for connecting AT-710 and APB
PUMP ×1 : for optional shower cleaning and sample drain
