  MKC-610

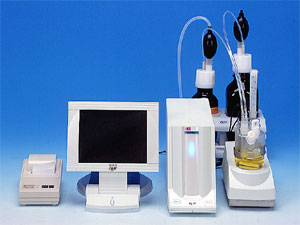

Karl Fischer Moisture Titrator MKC-610-DT

  • The large color LCD (8-inch wide) provides easy operations and better view of screen
  • Direct operations and maneuverability is now made possible with Touch screen LCD.
  • Simultaneous two titrations can be controlled individually. (JP Patent No. 2138712)
  • Built-in Compact Flash (CF) card slot for an additional user interface.
  • Operating unit and measuring unit can be separated The detachable measuring unit is convenient and useful for those samples requiring separation from operating unit.
  • Real time display of titration curve User can view the on-going titrations on display screen in real time.
  • Dispenser is now a standard equipment The reagent dispenser eliminates troublesome replacement of Karl Fischer reagent.
  • Measuring time is shortened by accelerated electrolysis (1.3 times faster than other models) Pre-titration and sample measurement time are now shortened 1.3 times faster by accelerated electrolysis.
  • GLP/GMP conformance Check results on the titration unit with standard substances are recorded, which are self-filed in a series for review, and the advance notice automatically appears on display to prompt periodic check and reagent replacement on schedule.


Type and model name Karl Fischer Moisture Titrator MKC-610
MKC-610-DT MKC-610-NT
Measuring method Karl Fischer coulometric titration
Range Water content: 10µg - 100mg
Measuring cell Two-component cell One-component cell
Precision
1)   Under 0.3% (n=10) of RSD for water-methanol 1mg H2O
2)   Display resolution: 0.1mg
Control method Constant-current pulse time control
EP detection method Polarized alternate current with twin platinum electrode
EP sense method EP is determined by sensing drift stability (selective) or titration limit time setup
Titration speed Max. 2.5mg/min Max. 2mg/min
Key entry Direct input with keys on the touch screen
Cable between the panel and titration unit can be extended.
Display
1)   8-inch (163.2 x 122.4mm) 256-color Liquid Crystal Display with 800 x 600 dots
2)   Language: English or Japanese
3)   Real-time display of titration and evaporation curve
Calculation Water concentration, Statistics (Mean, SD and RSD), Auto averaging, Blank level and Factor value
Other features
1)   Manual reagent dispenser as standard equipment
2)   Auto drift adjustment
3)   Auto titration start by sensing sample discharge into the flask
4)   Up to 10 storage of blank values
GLP conformance Check with standards: Notice of check date and record of check results
Reagent life control: Prior notice of reagent shelf life and date for reagent replacement
Operator registration: Up to 50 operators can be registered.
Required reagents Anolyte: 100mL
Catholyte: 5mL		 Anolyte: 150mL
External I/O COM port (Mini-DIN) x 2 channels (Printer, Balance, PC-Data Cap Software)
Ambient condition Temperature: 5 - 35 °C, Humidity: Under 85 %RH
Dimension
1)   Touch-screen control unit: 200W x 280D x 255H [mm]
2)   Measuring unit: 120W x 363D x 200H [mm]
3)   Stirrer: 118W x 225D x 332H [mm]
4)   Reagent suck/drain unit: 240W x 170D x 420H [mm]
