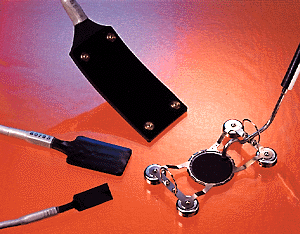

Heat Flow Sensors

Various sensors are provided as below to best suit your measurement needs:

Sensor	Description	Range	T. range
TR2, 6	Low heat flow sensor attached to thermal insulating material	10 - 3,000kcal/m2 • h	-40 - 150°C
TM1	Low heat flow small sensor for living body or small mechanical parts	10 - 3,000kcal/m2•h	-40 - 150°C
T500B, S	High temp high heat flow sensor to fix on furnace wall	300 - 15,000kcal/m2•h	70 - 500°C
T500B, S-20	High temp high heat flow sensor to fix on small area	300 - 15,000kcal/m2 •h	70 - 500°C
TW	Long life sensor for water cooled furnace wall	1000 - 100000 kcal/m2 •h	0 - 90°C
T750	Imbedded in furnace wall or insulating material	500 - 50,000 kcal/m2 •h	200 - 750°C
T750S	High temp heat flow sensor for electric furnace wall	500 - 50,000 kcal/m2 •h	200 - 750°C
TG	Highly sensitive sensor imbedded in soil, anti-corrosive and water proof	10 - 3,000 kcal/m2 •h	-40 - 300°C
TT	Rigid sensor to be placed on metal surface of industrial furnace	300 - 15,000 kcal/m2 •h	70 - 500°C
TF-T, S	Rigid sensor to be imbedded in blast/electric furnace wall	500 - 50,000 kcal/m2 •h	200 - 750°C
TV	Rigid sensor for water cooled blast furnace wall	1000 - 10,000 kcal/m2 •h	0 - 90°C
TC	Rigid and sensitive sensor imbedded in concrete or soil	10 - 2,000 kcal/m2 •h	-40 - 150°C
TR2/HS	Combined with heat sink and ER2 to measure calorie (radiation + convection)	10 - 3,000 kcal/m2 •h	0 - 150°C
