  Tview6 - Analysis Software for Titration Results

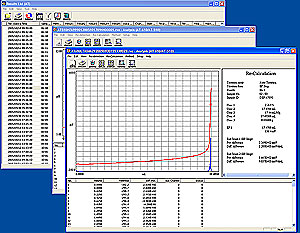

Example: "Automatic Potentiometric Titrator" results display Click on image to enlarge.
Example: "Automatic Potentiometric Titrator" results display

Example: "Karl Fischer Moisture Titrator" results display Click on image to enlarge.
Example: "Karl Fischer Moisture Titrator" results display

  • Can capture titration results stored in titrator on PC through CF memory card and manage/analyze them.
  • Central management of data as much as PC memory storage allows.
  • Quick data selection by the data extraction feature of PC.
  • Automatic report generation in MS Word format by outputting stored data.
  • Comparison of more than one plotting results on the same PC screen display (only AT-510 and AT-610) and statistical work of measured data for further analysis of measurement results.
  • Such features as EP re-detection (AT-610) or recalculation allow to re-analyze measurement results.

Measuring instruments compatible with this software include:
(1) Automatic Potentiometric Titrator : AT-610/AT-510
(2) Volumetric Karl Fischer Moisture Titrator : MKA-610
(3) Coulometric Karl Fischer Moisture Titrator : MKC-610

Minimum System Requirements for PC

Component Specifications
Operating System MS Windows 2000 (SP4) or Windows XP (SP1)
Processor Personal Computer with CPU speed 500 MHz or higher
Such as Intel Pentium/Celeron family, AMD K6-2/Athlon/Duron family or equivalent processors
Hard-disk space At least 50 MB
RAM AT least 128 MB
Monitor “1024 x 768” or higher resolution
Drive CD-ROM or DVD-ROM
One slot for PC card Standard Type II or external CF card reader
USB port Yes (at least one for serial protector)
