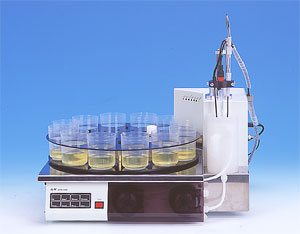

CHA-600 - Multiple Sample Changer
The sample changer exclusive for AT-610 and AT-510 Automatic Potentiometric Titrators Capable to make continuous measurements on 12 or 18 samples.
- Allow to make continuous measurements on multiple samples easily by titrator unit
- Compatible with various samples by combining shower rinsing or soak rinsing
- Allow to setup a user-sequence for rinsing samples according to their properties
- Allow for pre-treatment (dosing solvent) and post-treatment (draining waste liquid after measurement)
- Feature pre-treatment to allow reagent to be previously dosed
- Optional hood keeps operators from contacting hazardous solvents like acetic acid or pyridine
- Optional water circulator allows to make measurements at low or constant temperature
Specifications:
| Model name |
CHA-600-12 |
CHA-600-18 |
|
| Max samples loaded | 12 | 18 | |
| Rinsing method |
Standard: Shower rinsing |
||
| Rinsing solution | Pure water, Alcohol, Acetic acid or the like | ||
| Ambient conditions | Temperature: 5 - 35°C; Humidity: Below 85% RH | ||
| Power supply | 100-120 / 200-240 VAC, 50 / 60HZ | ||
| Power consumption | Approx. 50W | ||
| Dimension | 520 (W) X 426 (D) X 369 (H) mm | ||
| Weight | Approx. 17 kg | ||
| Available Vials | 100mL beaker (PP) |
Option
|
Standard accessory
|
| 200mL beaker (PP) |
Standard accessory
|
-
|
|
| 50mL beaker |
Option
|
Option
|
|
| 100mL beaker |
Option
|
-
|
|
| 200mL beaker |
Option
|
-
|
|
| 100mL tall beaker |
Option
|
-
|
|
| 200mL tall beaker |
Option
|
-
|
|
| 300mL tall beaker |
Option
|
-
|
|
| 200mL Erlenmeyer |
Option
|
-
|
|
