MKA-610

MKA-610-ST MKA-610-TT

The large color LCD (8-inch wide) provides easy operations and better view of screen
Direct operations and maneuverability is now made possible with Touch screen LCD.
Simultaneous two titrations can be controlled individually. (JP Patent No. 2138712)
Built-in Compact Flash (CF) card slot for an additional user interface.
Operating unit and measuring unit can be separated The detachable measuring unit is convenient and useful for those samples requiring separation from operating unit.
Real time display of titration curve User can view the on-going titrations on display screen in real time.
Dispenser is now a standard equipment The reagent dispenser eliminates troublesome replacement of Karl Fischer reagent.
No necessity of changing the electrode sensitivity and endpoint potential KEM's patented unique technology of end point detection by compensating liquid resistance eliminates the necessity of adjusting the electrode sensitivity and end point potential level to the individual solvent or sample type.
GLP/GMP conformance Check results on the titration unit with standard substances are recorded, which are self-filed in a series for review, and the advance notice automatically appears on display to prompt periodic check and reagent replacement on schedule.

pe and model name

Karl Fischer Moisture Titrator MKA-610

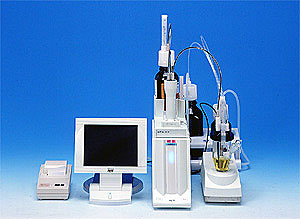

MKA-610-ST

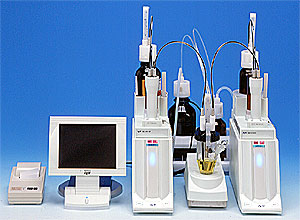

MKA-610-TT

Measuring method

Karl Fischer volumetric titration

Range

1)		Titration volume: 0.006 - 99.995mL
2)		Water content: 0.1 - 500mgH2O (subject to KF reagent factor)
3)		Water concentration: 10ppm - 100%

Burettes

Single burette

Twin burettes

Burette precision

1)		Capacity: 10mL burette
2)		Discharge precision: ±0.015mL
3)		Repeatability: ±0.005mL

EP detection method

Polarized potential detection with twin platinum electrode

EP sense method

EP is determined when preset polarized potential elapses wait time.
Wait time range: 1 - 99 sec

Titration form

Regular titration

Regular/Back/
Auto factor calibration with water and methanol

Key entry

Direct input with keys on the touch screen
Cable between the panel and titration unit can be extended.

Display

1)		8-inch (163.2 x 122.4mm) 256-color Liquid Crystal Display with 800 x 600 dots
2)		Language: English or Japanese
3)		Real-time display of titration and evaporation curve

Calculation

Water concentration, Statistics (Mean, SD and RSD), Auto averaging, Blank level and Factor value

Other features

1)		Stirrer with auto reagent dispenser as standard equipment
2)		Auto drift cancellation with potential stat to maintain EP level
3)		Auto titration start by sensing sample discharge into the flask
4)		Up to 10 storage of blank values and factor values

GLP conformance

Check with standards: Notice of check date and record of check results
Reagent factor calibration: Prior notice of date for calibration and reagent change and record of calibration results
Operator registration: Up to 50 operators can be registered.

Required solvent

30 - 100mL (for S-shape flask)

External I/O

COM port (Mini-DIN) x 2 channels (Printer, Balance, PC-Data Cap Software)

Ambient condition

Temperature: 5 - 35 °C, Humidity: Under 85 %RH

Dimension

1)		Touch-screen control unit: 200W x 280D x 255H [mm]
2)		Measuring unit: 120W x 363D x 610H [mm]
3)		Stirrer: 118W x 225D x 320H [mm]
4)		Reagent suck/drain unit: 240W x 170D x 250H [mm]
5)		Power burette: 120W x 363D x 610H [mm]
6)		Printer: 106W x 180D x 88H [mm]
