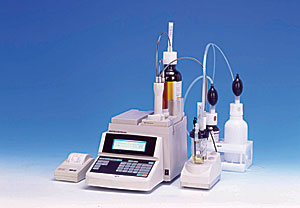

Karl Fischer Moisture Titrator MKS-520
    Single burette type Karl Fischer Moisture Titrator


  • Titration nozzle of burette is made of PTFE and two kinds of nozzle, anti-diffusion type and normal type are attached as standard accessories.
  • Safety cover to protect glass burette.
  • Changing KF reagent can be made easily by simplified burette unit.
  • Built-in Manual solvent exchanger is now standard, which pumps solvent in and out of the titration vessel.
  • Allows automatic control of the ADP-511S Evaporator.
  • Fully conforms to GLP and GMP, plus FDA Part 11 with KF-Win/ER software
    Report can be printed out by the optional printer.
    Confirmation and recording measurement precision can be saved up to 100 samples.
    Up to 100 calibration results can be saved.
    Up to 10 operator names can be registered.
    Up to 10 sample names can be registered.

Applications: Industrial products, pharmaceutical, foods, petrochemical products, etc.
Range 0.1mg - 500mgH2O, 10ppm - 100%H2O
Burette Capacity 10mL
Precision ±0.015mL
Display 30 digits x 7 lines LCD with a backlight
External I/O * Printer
* Balance
* Computer via RS232C
Output H2O, concentration, dialogue messages
Ambient condition 5 - 35°C, less than 85%RH
Power 100 -120/200-240 VAC, 50/60Hz
Power consumption Approx. 35W
Dimension Main: 274(W) x 462(D) x 560(H) mm
Stirrer: 120(W) x 225(D) x 320(H) mm
Weight Approx. 12.5 kg
