 Thermal Measurement Meters

  QTM-500 - Quick Thermal Conductivity Meter

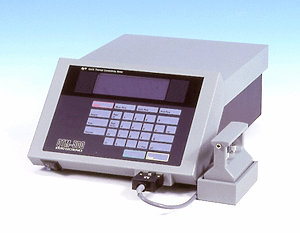

Quick Thermal Conductivity Meter QTM-500

Thermal conductivity of all types of sample materials can be measured quickly and
easily. Just place the probe on sample surface of temperature equilibrium and wait
for 60 seconds. You will obtain the results.
For thin sample materials like film (30 - 100µm), sheet or board (0.1 - 8mm), use the
optional software for measurement of thin films.

Measurement method Hot Wire Method
Range 0.023 - 12W/m • K (standard probe)
Precision ±5%/reading value per reference plate
Reproducibility ±3%/reading value per reference plate
